KLAY EnerSol is recognized as a market leader in providing high temperature insulation systems & hot spot repairs.
An Authorized Distributor for 3M™ Nextel™ Ceramic Fabrics
and Textiles since 2017, KLAY EnerSol has since provided consultancy and installation for Petrochemical customers in Southeast Asia. We have vast converting capabilities and work closely with 3M to produce high-quality solutions to meet the toughest operating temperature in your environment.

Providing solutions for your
extreme temperature challenges

What is Nextel

3M™ Nextel™ Ceramic Fabrics and Textiles is an effective and easy to install solution for industrial insulation. It is engineered to withstand extreme operational conditions in process heaters and furnace reformers.

Nextel Ceramic Fabrics can provide improved temperature resistance to internal and external tube seals and expansion joints or used as heat shields for radiant coils to prevent coke formulation and reduce premature aging of the tube surface.

Designed and fabricated by KLAY EnerSol, Nextel Ceramic Fabrics can be made into any shapes, as simple as pipe section insulation to as complex as a multi-tube furnace opening seal.

Why Nextel a good material

Nextel Ceramic Fabrics are oxidant resistant, chemically inert, lightweight, flexible, flame resistant and electrically insulating at high temperatures up to 900–2372°F (482–1300°C).

  • Good dynamic thermal and mechanical insulation properties
  • Low shrinkage (less than 3% over 15 hours at 900–2372°F (482–1300°C).
  • Resistance to corrosion and abrasion
  • Long life in high temperature environment
  • No residue acids or chloride to leach out and cause etching of metals
Ceramic Fabrics Materials
Nextel Ceramic Fabrics Company in Malaysia

Why use Nextel

Nextel Ceramic Fabrics exhibit excellent dimensional stability and low thermal conductivity, as well as possessing non-porous and non-hygroscopic characteristics. They retain their flexibility even at continuous temperatures of up to 2372ºF (1300°C).

Nextel Ceramic Fabrics can be fully prefabricated. This allowed for a fast installation conforming to the irregular shapes within the furnace, requiring less costly labor and operational downtime.

Tube Seals (Multi-Tube Bellows)
Heat Shields
Furnace Lining

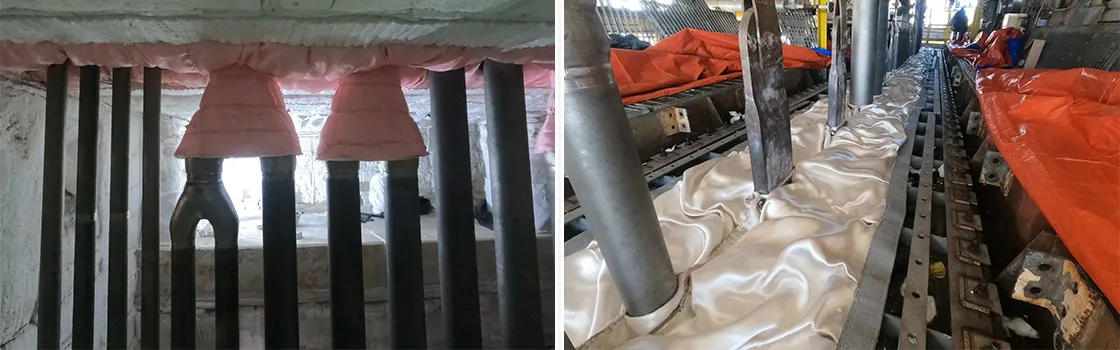

Best Multi Tube Bellows

Tube seals or Multi Tube Bellows can be fabricated using Nextel™ Ceramic Fabrics to seal complex gaps in the fired heater or furnace systems. This solution can absorb the multi-axial movement of the tubes, whilst still retaining a near perfect seal on the interface between the firebox and the external environment.

By creating a flexible sealing solution around tube penetrations in furnace walls and ceilings, Nextel Ceramic Fabrics can

  • Significantly reduce cold air ingress resulting in improved furnace efficiency
  • Allow unrestricted movement of the tubes while maintaining complete seals.
  • Prevent harmful NOx emission
  • Withstand temperatures of up to 2372ºF (1300°C).
  • Reduce the possibility of tube damage due to rapid quenching.

Tube seals or Multi Tube Bellows can be found in Furnaces, Ethylene Crackers, Boilers, Reformers, Heaters, Crude Heaters, Incinerators, Process Heaters

Heat Shields Protection

Heatshields are heat reflectors for protecting the surface of furnace internals (e.g. process tubes, riser tubes, hangers, and brackets) against too much radiation heat.

Nextel Ceramic Fabrics serve a wide variety of high-temperature heat shielding applications in and around furnaces. Lightweight, flexible and featuring excellent resistance to thermal shock, they can be sewn into countless forms: heat shields to protect specific areas, pads for transporting high-temperature materials, or ties for securing an object within a high-temperature location.

In the petrochemical industry, Nextel Ceramic Fabrics are an excellent choice for heat shields due to the following

  • Decreases coke-forming in radiant coils and tubes.
  • Prevents ageing acceleration of tube skin surface and welds of furnace internals.
  • Shields sections of process tubes susceptible to hotspots.
  • 60% reflection rate of radiant heat.
  • Shorter lead time, easy to install
  • Removable and reusable.

Furnace Lining

3M Nextel furnace lining system will help reduce dust, avoid product contamination and extend the lifetime of the furnace insulation.

Nextel Furnace Lining systems are oxidation resistant, chemically resistant, lightweight and flame resistant. They minimize erosion in ceramic bulk fiber modules and other insulating materials, which helps to reduce maintenance costs.

Multi Tube Furnace Seal

KLAY EnerSol 3M™ Nextel™ Ceramics Fabrics Tube Seal Project

Designed Ceramic Fabrics

KLAY EnerSol Orchestrates A Nimble Furnace Turnaround Using 3M™ Nextel™ Ceramic Fabrics

Ceramic Fabrics Application Brochure

3M™ Nextel™ Ceramic Fabrics Application Brochure

Multi Tube Radiant Heat Reflector

KLAY EnerSol 3M™ Nextel™ Ceramics Fabrics Heat Shield Project

Ceramics Fabrics and Textile

3M™ Nextel™ Ceramics Fabrics And Textile Technical Guide
