Cold & Cryogenic Insulation – Cryogel® Z

Introduction to Cold & Cryogenic Insulation – Cryogel® Z

Aspen Aerogel’s Cryogel® Z is an exceptional insulation for cryogenic and sub-ambient applications in the oil and gas processing industry and other industrial appliances. Cryogel® Z flexible blankets feature unique silica aerogel with a factory-applied vapour barrier. It has the lowest k-value of any widely used cryogenic insulation material, reducing thickness by 50% to 80% compared to other available cryogenic insulations.

Features of Cryogel® Z

  • Delivers maximum thermal protection in the range of -270⁰C to 90⁰C.
  • Factory-applied vapour barrier to resist water vapour and moisture from penetrating through the insulation and freeze at cryogenic temperatures.
  • Easy to wrap and insulate practically any equipment.
  • Extremely low thermal conductivity (k-value) reduces heat gain and liquid boil-off.

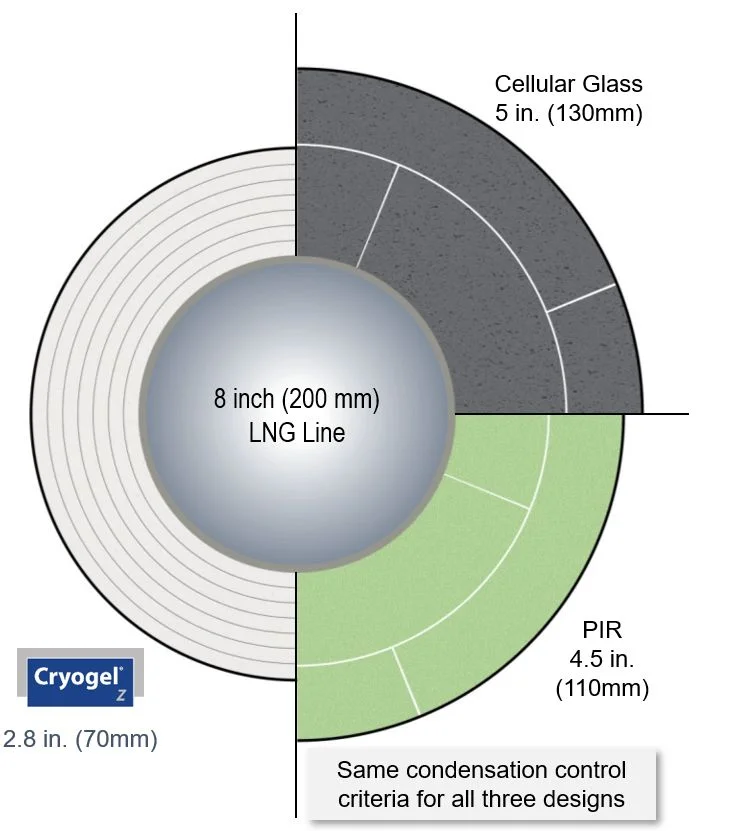

  • Minimal weight and thin profile reduce insulation thickness by 50% - 80% compared to other cryogenic insulations.

Applications of Cryogel® Z

Cryogel® Z is ideal for all industries, such as Oil & Gas Processing Industry for

  • LNG
  • LPG
  • Ethylene
  • Ammonia
  • Refineries and others

Liquification Processes for

  • Nitrogen
  • Hydrogen
  • Oxygen
  • CO2 and others

Piping, Equipment and Systems such as

  • Cryogenic Piping & Pipelines

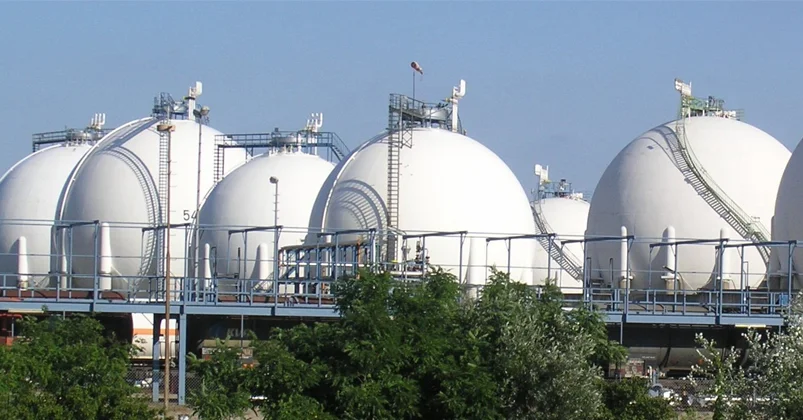

  • Cryogenic Storage & Vessels
  • Chilled Water Systems
  • Distillation Towers
  • Regasification Systems
  • Cold Evaporators and others

Physical Properties

Thickness* 0.2in (5mm) 0.4in (10mm)
Roll Size Length: Approx. 1250ft2
Width: 58in
Length: Approx. 700ft2
Width: 58in
Max. Use Temp. 125°C (257°F)
Colour White
Density* 10lb/ft3 (0.16g/cc)
Hydrophobic Yes

Key Benefits

EXCELLENT THERMAL PERFORMANCE

Extremely low thermal conductivity (k-value) promotes five times better thermal performance compared to other insulation products for improved efficiency and energy savings.

LONG TERM INSULATION SOLUTION AND ASSET PROTECTION

Cryogel® Z hydrophobic nature and additional vapour barrier prevents Corrosion Under Insulation (CUI), minimizing the requirement for equipment inspection and maintenance.

THIN PROFILE

Equal thermal resistance with minimal thickness is ideal in a space-constrained environment.

ZERO PERMEABILITY TO WATER VAPOUR

Factory-laminated vapour retarder provides moisture protection, prevents damage from condensation and enhances process control to any insulation system operating at cryogenic temperatures.

QUICK AND EASY APPLICATION

Readily available in blanket forms that is easily cut and shaped to fit all equipment and pipings.

SHIPPING AND WAREHOUSING SAVINGS

Material volume savings, minimal site storage, and simplified logistics.

FIRE RESISTANT

Offers protections against cold splash, pool fire, and jet fire

ENVIRONMENTALLY SAFE

Landfill disposable, shot-free, with no respirable fiber content.

Specification Compliance and Test Procedure

Test Procedure Property Results
ASTM C1728, Type 1, Grade 1B Standard Specification for Flexible Aerogel Insulation Complies
ASTM C1651 Compressive Resistance ≥ 5 psi (34.5 kPa) @ 10% deformation
ASTM C356 Linear Shrinkage Under Soaking Heat < 2%
ASTM C795 Insulation for Use Over Austenitic Stainless Steel Pass
ASTM C1101/1101M F Flexibility of Blanket Insulation Flexible
ASTM C1104/1104M Water Vapor Sorption ≤ 5% (by weight)
ASTM C1338 Fungal Resistance of Insulation Materials No Growth
ASTM C1617 Corrosiveness to Steel Pass
ASTM C1763 Water Absorption by Immersion Pass
ASTM E84 Surface Burning Characteristics Flame Spread Index ≤ 25
Smoke Developed Index ≤ 50
ASTM E96 Water Vapor Transmission Rate of Vapor Retarder 0.00 perm
ISO 15665 Acoustic Insulation for Pipes, Valves & Flanges Configurations possible to meet Class A2, B2, C2, and Shell D2
OTI 95 634 Jet-Fire Resistance Test of Passive Fire Protection Materials 75min – 60mm
120min – 100mm
UL 1709 Structural Steel Fire Protection 30min – 20mm
60min – 30mm
90min – 50mm
120min – 60mm
150min – 70mm
IMO SOLAS Convention FTP Code Compliant to Parts 2 & 5

Product Documents

Datasheet
Cryogel® Z Datasheet
Safety Datasheet
Cryogel® Z Safety Datasheet
Installation Manual
Cryogel® Z Installation Manual
Other Documents
Why Cryogel® Z for LNG Brochure
